產品概述
ISGB型便拆立式管道離心泵是在ISG型泵的基礎上開發成功的一種結構新穎，技術先進的產品。該立式泵特別是在整體結構上進行大膽突破設計。采用獨立軸承體、泵軸支撐，解決了原來立式泵靠電機軸承支撐的不足之處；采用優秀水力模型的葉輪，消除了原立式泵軸向力大的不足之處；電機采用Y系列標準通用電機，解決原立式泵加長軸電機配套更換難的問題；同時100％的便拆結構，解決了更換大功率水泵的軸承、機械密封、葉輪、泵軸的難題。
該泵與國內同類產品相比，具有運轉更平穩、使用壽命長、配套更方便、維護保養更輕松等等，無可代替的優點。在立式泵系列產品中屬國內前列，各項技術居國內領先，是替代ISG型立式泵、IS型離心泵、S型雙吸泵等常規各種離心泵的最理想產品。
結構特點
1、立式結構，安裝調試方便，獨特設計的電機和泵體采用聯接體聯接，同心度高、加工精度高，占地面積大大減少，縮減了泵房建筑投資30％一60％。底腳穩固、結構緊湊、精美的鑄造和外觀處理賦予立式離心泵新的美感，使產生品煥發藝術的魅力，可以和國外著名廠家立式泵媲美。
2、配用國內著名廠家生產的Y系列標準通用電機，運行平穩、噪音極低。
3、軸承采用國際著名品牌精密軸承，精度高、可靠性好、壽命長。
4、葉輪采用90年代最優秀可自平衡軸向力的水力模型，使得泵軸承和機械密封使用壽命大大延長。
5、電機軸承座內的軸承都配有加油孔和放油孔，對軸承的維護保養十分方便。
6、可拆卸硬性中間聯軸器，使泵起動無振動、無噪音，旋轉部件設有可靠的安全防護罩，安全性極好。
7、機械密封采用不銹鋼、碳化鎢、氟橡膠等材料制成，耐高溫、高壓，運行壽命長，無滲漏，對軸無磨損，保證工作環境整潔。
8、泵蓋結構設計獨特，只要卸下硬性中間聯軸器、泵蓋螺母，即可十分輕便取出軸承座。泵蓋、泵軸、葉輪等組合件，進行更換機械密封和葉輪，而不必拆卸電機、泵體和管道，維修方便快捷。
工作條件
1、泵系統最高工作壓力為1．6MPa，即泵吸入口壓力+泵揚程≤1．6MPa(泵揚程工作壓力大于1．6MPa時應在訂貨另行提出，以便在制造時泵的過流部件和聯接部件采用鑄鋼)。
2、輸送介質為清水或物理化學性質類似清水的其它液體。(輸送介質帶有細小顆粒的應在訂貨時另行說明，以便裝配耐磨式機械密封)。
3、環境溫度≤40℃，海拔高度≤1000m，相對濕度≤95%。

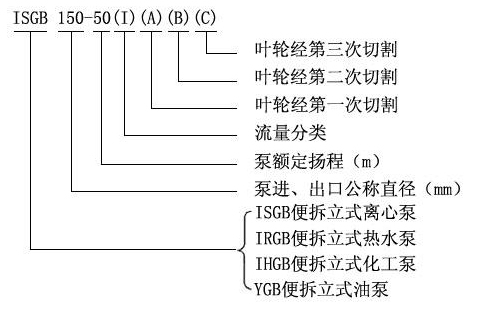

型號意義
性能參數表
| 型號 | 流量Q |
揚程 H m |
效率 % |
轉速 N r/min |
電機功率 P KW |
必需汽蝕余量 NPSHr m |
重量 W kg |
|
| m3/h | l/s | |||||||
| ISGB40-12.5 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
13.2 12.5 11.3 |
48 54 53 |
2900 | 0.55 | 2.3 | 35 |
| ISGB40-12.5A |
3.9 5.6 7.4 |
1.08 1.56 2.06 |
10.6 10 9 |
52 | 2900 | 0.37 | 2.3 | 35 |
| ISGB40-20 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
21 20 18 |
41 46 43 |
2900 | 1.1 | 2.3 | 35 |
| ISGB40-20A |
3.9 5.6 7.4 |
1.08 1.56 2.06 |
17.6 16 14.4 |
40 45 41 |
2900 | 0.75 | 2.3 | 33 |
| ISGB40-32 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
23 32 30 |
35 40 40 |
2900 | 2.2 | 2.3 | 50 |
| ISGB40-32A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
29 28 26.3 |
34 39 39 |
2900 | 1.5 | 2.3 | 45 |
| ISGB40-32B |
3.8 5.5 7.2 |
1.06 1.53 2.00 |
25.5 24 22.5 |
34 38 37 |
2900 | 1.1 | 2.3 | 40 |
| ISGB40-50 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
51 50 48 |
26 33 32 |
2900 | 4.0 | 2.3 | 75 |
| ISGB40-50A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
45 44 42 |
20 31 30 |
2900 | 3.0 | 2.3 | 65 |
| ISGB40-50B |
3.7 5.3 7.0 |
1.03 1.47 1.94 |
38 36 34.5 |
29 | 2900 | 2.2 | 2.3 | 55 |
| ISGB40-80 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
82 80 74 |
24 28 28 |
2900 | 7.5 | 2.3 | 110 |
| ISGB40-80A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
72 70 65 |
24 28 27 |
2900 | 5.5 | 2.3 | 105 |
| ISGB40-80B |
3.8 5.5 7.2 |
1.06 1.53 2.00 |
61.5 60 56 |
23 27 26 |
2900 | 5.5 | 2.3 | 80 |
| ISGB40-12.5(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.2 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.3 | 35 |
| ISGB40-12.5(I)A |
8 11 14.5 |
2.22 3.06 4.03 |
10.6 10 9 |
60 | 2900 | 0.75 | 2.3 | 32 |
| ISGB40-20(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 57 |
49 58 57 |
2900 | 1.5 | 2.3 | 40 |
| ISGB40-20(I)A |
8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 | 2900 | 1.1 | 2.3 | 35 |
| ISGB40-32(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3.0 | 2.3 | 60 |
| ISGB40-32(I)A |
8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 | 2.3 | 50 |
| ISGB40-32(I)B |
7.3 10.4 13.5 |
2.38 2.89 3.75 |
26 24 20 |
50 | 2900 | 1.5 | 2.3 | 45 |
| ISGB40-50(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
51.2 50 48 |
38 46 46 |
2900 | 5.5 | 2.3 | 90 |
| ISGB40-50(I)A |
8.3 11.7 15.3 |
2.31 3.25 4.25 |
45 44 42 |
37 46 45 |
2900 | 4.0 | 2.3 | 80 |
| ISGB40-50(I)B |
7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
40 | 2900 | 3.0 | 2.3 | 70 |
| ISGB40-80(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
81.2 80 77.5 |
31 38 40 |
2900 | 11.0 | 2.3 | 150 |
| ISGB40-80(I)A |
8.2 11.6 15.2 |
2.28 3.22 4.22 |
71 70 68 |
38 | 2900 | 7.5 | 2.3 | 100 |
| ISGB40-80(I)B |
7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
37 | 2900 | 7.5 | 2.3 | 95 |
| ISGB40-80(I)C |
7.1 10.1 13.1 |
1.97 2.87 3.64 |
53.2 52 50.4 |
36 | 2900 | 5.5 | 2.3 | 90 |
| ISGB50-12.5 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.6 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.3 | 40 |
| ISGB50-12.5A |
8 11 14.5 |
2.22 3.05 4.03 |
11 10 9 |
60 | 2900 | 0.75 | 2.3 | 35 |
| ISGB50-20 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 17.8 |
49 58 57 |
2900 | 1.5 | 2.3 | 45 |
| ISGB50-20A |
8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 | 2900 | 1.1 | 2.3 | 40 |
| ISGB50-32 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3.0 | 2.3 | 60 |
| ISGB50-32A |
8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 | 2.3 | 50 |
| ISGB50-32B |
7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
50 | 2900 | 1.5 | 2.3 | 46 |
| ISGB50-50 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
52 50 48 |
38 46 46 |
2900 | 5.5 | 2.3 | 105 |
| ISGB50-50A |
8.3 11.7 15.3 |
2.31 3.25 4.25 |
45.8 44 42 |
37 45 45 |
2900 | 4.0 | 2.3 | 85 |
| ISGB50-50B |
7.5 10.6 13.8 |
2.08 2.94 3.83 |
40 38 35 |
44 | 2900 | 3.0 | 2.3 | 70 |
| ISGB50-80 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
82 80 77.5 |
29 38 40 |
2900 | 11.0 | 2.3 | 160 |
| ISGB50-80A |
8.2 11.6 15.2 |
2.28 3.22 4.22 |
71.5 70 68 |
29 38 41 |
2900 | 7.5 | 2.3 | 120 |
| ISGB50-80B |
7.6 10.8 14 |
2.11 3.0 3.89 |
61.5 60 58 |
27.5 37 40 |
2900 | 7.5 | 2.3 | 115 |
| ISGB50-80C |
7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 50.4 |
27 36 39 |
2900 | 5.5 | 2.3 | 110 |
| ISGB50-12.5(I) |
17.5 25 32.5 |
4.86 6.97 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 | 2.5 | 45 |
| ISGB50-12.5(I)A |
15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 | 2.5 | 40 |
| ISGB50-20(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 | 3.0 | 2.5 | 60 |
| ISGB50-20(I)A |
15.6 22.3 29 |
4.33 6.19 8.1 |
17.5 16 13.6 |
58 66 65 |
2900 | 2.2 | 2.5 | 50 |
| ISGB50-32(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
55 63 60 |
2900 | 4.0 | 2.5 | 75 |
| ISGB50-32(I)A |
16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 | 4.0 | 2.5 | 75 |
| ISGB50-32(I)B |
15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
61 | 2900 | 3.0 | 2.5 | 65 |
| ISGB50-50(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 | 2.5 | 110 |
| ISGB50-50(I)A |
16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 7.5 | 2.5 | 110 |
| ISGB50-50(I)B |
15.2 21.8 28.3 |
4.22 6.06 7.86 |
40.5 38 34.5 |
55 | 2900 | 5.5 | 2.5 | 100 |
| ISGB50-80(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15.0 | 2.5 | 175 |
| ISGB50-80(I)A |
16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 51 52 |
2900 | 11.0 | 2.5 | 165 |
| ISGB50-80(I)B |
15 21.6 28 |
4.17 6.0 7.78 |
61 60 58 |
38 50 54 |
2900 | 11.0 | 2.5 | 165 |
| ISGB50-125(I) |
17.3 25 32.5 |
4.6 6.94 9.03 |
128 125 122 |
31 40 44 |
2900 | 30.0 | 2.5 | 310 |
| ISGB50-125(I)A |
16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
30 40 44 |
2900 | 22.0 | 2.5 | 250 |
| ISGB50-125(I)B |
15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 | 2900 | 18.5 | 2.5 | 215 |
| ISGB50-125(I)C |
14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 | 2900 | 15.0 | 2.5 | 195 |
| ISGB65-12.5 |
17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 | 2.5 | 45 |
| ISGB65-12.5A |
15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 | 2.5 | 40 |
| ISGB65-20 |
17.5 25 32.5 |
4.86 6.94 9.03 |
22 20 18 |
60 68 67 |
2900 | 3.0 | 2.5 | 60 |
| ISGB65-20A |
15.6 22.3 29 |
4.33 6.19 8.1 |
17.5 16 14.4 |
58 66 65 |
2900 | 2.2 | 2.5 | 50 |
| ISGB65-32 |
17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 | 4.0 | 2.5 | 75 |
| ISGB65-32A |
16.4 23.4 30.1 |
4.56 6.5 8.44 |
30 28 24.5 |
54 62 59 |
2900 | 4.0 | 2.5 | 75 |
| ISGB65-32B |
15 21.6 28 |
4.17 6.0 7.78 |
26 24 21 |
51 61 60 |
2900 | 3.0 | 2.5 | 65 |
| ISGB65-50 |
17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 | 2.5 | 110 |
| ISGB65-50A |
16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 7.5 | 2.5 | 110 |
| ISGB65-50B |
15.2 21.8 28.3 |
4.22 6.06 7.86 |
40.5 38 34 |
55 | 2900 | 5.5 | 2.5 | 100 |
| ISGB65-80 |
17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15.0 | 2.5 | 185 |
| ISGB65-80A |
16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 | 11.0 | 2.5 | 170 |
| ISGB65-80B |
15 21.6 28 |
4.17 6.0 7.78 |
61 60 58 |
38 49 54 |
2900 | 11.0 | 2.5 | 170 |
| ISGB65-125 |
17.5 25 32.5 |
4.86 6.94 9.03 |
127 125 122 |
32 40 44 |
2900 | 30.0 | 2.5 | 320 |
| ISGB65-125A |
16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
32 40 44 |
2900 | 22.0 | 2.5 | 260 |
| ISGB65-125B |
15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 | 2900 | 18.5 | 2.5 | 225 |
| ISGB65-125C |
14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 | 2900 | 15.0 | 2.5 | 210 |
| ISGB65-12.5(I) |
35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3.0 | 3.0 | 65 |
| ISGB65-12.5(I)A |
31.3 44.7 58 |
8.7 12.4 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 | 3.0 | 55 |
| ISGB65-20(I) |
35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.0 | 100 |
| ISGB65-20(I)A |
31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
60 71 69 |
2900 | 4.0 | 3.0 | 80 |
| ISGB65-32(I) |
35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 | 3.0 | 105 |
| ISGB65-32(I)A |
32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 25 |
62 70 69 |
2900 | 7.5 | 3.0 | 105 |
| ISGB65-32(I)B |
30.0 43.3 56.3 |
8.4 12.0 15.6 |
26 24 21 |
69 | 2900 | 5.5 | 3.0 | 95 |
| ISGB65-50(I) |
35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 | 15.0 | 3.0 | 180 |
| ISGB65-50(I)A |
32.8 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11.0 | 3.0 | 165 |
| ISGB65-50(I)B |
30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
65 | 2900 | 7.5 | 3.0 | 115 |
| ISGB65-80(I) |
35 50 65 |
9.7 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22.0 | 3.0 | 235 |
| ISGB65-80(I)A |
32.5 46.7 61 |
9.0 13.0 16.9 |
73 70 63 |
52 59 60 |
2900 | 18.5 | 3.0 | 205 |
| ISGB65-80(I)B |
30 43.3 56 |
8.3 12.0 15.6 |
63 60 54 |
58 | 2900 | 15.0 | 3.0 | 180 |
| ISGB65-125(I) |
35 50 65 |
9.72 13.9 18.1 |
128 125 121 |
44 54 57 |
2900 | 37.0 | 3.0 | 350 |
| ISGB65-125(I)A |
32.5 46.5 60.5 |
9.0 12.9 16.8 |
116 113 110 |
43 54 57 |
2900 | 30.0 | 3.0 | 335 |
| ISGB65-125(I)B |
31 44.5 58 |
8.6 12.4 16.1 |
103 101 97 |
40 53 56 |
2900 | 30.0 | 3.0 | 335 |
| ISGB65-125(I)C |
29 41 53.6 |
8.1 11.4 14.9 |
87 85 83 |
39 51 55 |
2900 | 22.0 | 3.0 | 270 |
| ISGB80-12.5 |
35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3.0 | 3.0 | 65 |
| ISGB80-12.5A |
31.3 44.7 58 |
8.7 12.5 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 | 3.0 | 60 |
| ISGB80-20 |
35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.0 | 100 |
| ISGB80-20A |
31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 | 4.0 | 3.0 | 80 |
| ISGB80-32 |
35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 | 3.0 | 105 |
| ISGB80-32A |
32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 25 |
62 70 69 |
2900 | 7.5 | 3.0 | 105 |
| ISGB80-32B |
30.3 43.3 56.3 |
8.4 12.0 15.6 |
27 24 20 |
69 | 2900 | 5.5 | 3.0 | 100 |
| ISGB80-50 |
35 50 65 |
9.72 13.9 18.1 |
53.3 50 46 |
55 67 68 |
2900 | 15.0 | 3.0 | 175 |
| ISGB80-50A |
328 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11.0 | 3.0 | 170 |
| ISGB80-50B |
30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
53 65 67 |
2900 | 7.5 | 3.0 | 120 |
| ISGB80-80 |
35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22.0 | 3.0 | 240 |
| ISGB80-80A |
32.5 46.7 61 |
9.0 13.0 16.9 |
73 70 64 |
52 59 60 |
2900 | 18.5 | 3.0 | 210 |
| ISGB80-80B |
30 43.3 56 |
8.3 12.0 15.6 |
63 60 54 |
58 | 2900 | 15.0 | 3.0 | 190 |
| ISGB80-125 |
35 50 65 |
9.72 13.9 18.1 |
128 125 122 |
43 54 57 |
2900 | 37.0 | 3.0 | 360 |
| ISGB80-125A |
32.5 46.5 60.5 |
9 12.9 16.8 |
116 113 110 |
42 53 56 |
2900 | 30.0 | 3.0 | 345 |
| ISGB80-125B |
31 44.5 58 |
8.6 12.4 16.1 |
103 101 97 |
53 | 2900 | 30.0 | 3.0 | 340 |
| ISGB80-125C |
29 41 53.6 |
8.1 11.4 14.9 |
98 85 83 |
51 | 2900 | 22.0 | 3.0 | 275 |
| ISGB80-12.5(I) |
70 100 130 |
194 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 | 5.5 | 4.5 | 110 |
| ISGB80-12.5(I)A |
62.6 89 116 |
17.4 24.7 32.2 |
11 10 8.8 |
64 74 74 |
2900 | 4.0 | 4.5 | 85 |
| ISGB80-20(I) |
70 100 130 |
19.4 27.8 36.1 |
23.5 20 14 |
70 76 72 |
2900 | 11.0 | 4.5 | 165 |
| ISGB80-20(I)A |
62.6 89 116 |
17.4 24.7 32.2 |
19 16 11 |
68 74 65 |
2900 | 7.5 | 4.5 | 130 |
| ISGB80-32(I) |
70 100 130 |
19.4 27.8 36.1 |
36.5 32 24 |
70 76 65 |
2900 | 15.0 | 4.5 | 185 |
| ISGB80-32(I)A |
65.4 93.5 131.6 |
18.2 26.0 33.8 |
32 28 21 |
68 74 67 |
2900 | 11.0 | 4.5 | 175 |
| ISGB80-32(I)B |
60.6 86.6 112.5 |
16.8 24.1 31.3 |
27 24 18 |
72 | 2900 | 11.0 | 4.5 | 175 |
| ISGB80-50(I) |
70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
65 74 73 |
2900 | 22.0 | 4.0 | 250 |
| ISGB80-50(I)A |
65.4 93.5 121.6 |
18.2 26.4 33.8 |
47.5 44 39 |
64 73 72 |
2900 | 18.5 | 4.0 | 220 |
| ISGB80-50(I)B |
61 87 113 |
16.9 24.2 31.4 |
41 38 32 |
71 | 2900 | 15.0 | 4.0 | 200 |
| ISGB80-80(I) |
70 100 130 |
19.4 27.8 36.1 |
87 80 68 |
62 69 68 |
2900 | 37.0 | 4.0 | 330 |
| ISGB80-80(I)A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
76 70 59.5 |
61 68 67 |
2900 | 30.0 | 4.0 | 315 |
| ISGB80-80(I)B |
61 87 113 |
16.9 24.2 31.4 |
65 60 51 |
66 | 2900 | 30.0 | 4.0 | 315 |
| ISGB80-125(I) |
70 100 130 |
19.4 27.8 36.1 |
132 125 114 |
55 66 67 |
2900 | 75.0 | 4.0 | 675 |
| ISGB80-125(I)A |
66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 104 |
55 66 67 |
2900 | 55.0 | 4.0 | 535 |
| ISGB80-125(I)B |
63 90 117 |
17.5 25 32.5 |
106.6 101 92 |
65 | 2900 | 45.0 | 4.0 | 425 |
| ISGB80-125(I)C |
58 82 107 |
16.1 22.8 29.7 |
90 85 76 |
63 | 2900 | 37.0 | 4.0 | 370 |
| ISGB100-12.5 |
70 100 130 |
19.4 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 | 5.5 | 4.5 | 115 |
| ISGB100-12.5A |
62.6 89 116 |
17.4 24.7 32.2 |
11 10 8.8 |
64 74 74 |
2900 | 4.0 | 4.5 | 90 |
| ISGB100-20 |
70 100 130 |
19.4 27.8 36.1 |
23.5 20 14 |
70 76 65 |
2900 | 11.0 | 4.5 | 170 |
| ISGB100-20A |
62.6 89 116 |
17.4 24.7 32.2 |
19 16 11 |
68 74 63 |
2900 | 7.5 | 4.5 | 120 |
| ISGB100-32 |
70 100 130 |
19.4 27.8 36.1 |
36.5 32 24 |
70 76 65 |
2900 | 15.0 | 4.5 | 200 |
| ISGB100-32A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
32 28 21 |
68 74 67 |
2900 | 11.0 | 4.5 | 185 |
| ISGB100-32B |
60.6 86.6 112.5 |
16.8 24.1 31.3 |
27 24 18 |
72 | 2900 | 11.0 | 4.5 | 180 |
| ISGB100-50 |
70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
65 74 73 |
2900 | 22.0 | 4.0 | 245 |
| ISGB100-50A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
47.5 44 37 |
64 73 72 |
2900 | 18.5 | 4.0 | 215 |
| ISGB100-50B |
61 87 113 |
16.9 24.2 31.4 |
41 38 34 |
71 | 2900 | 15.0 | 4.0 | 195 |
| ISGB100-80 |
70 100 130 |
19.4 27.8 36.1 |
87 80 68 |
62 69 68 |
2900 | 37.0 | 4.0 | 345 |
| ISGB100-80A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
76 70 59.5 |
61 68 67 |
2900 | 30.0 | 4.0 | 330 |
| ISGB100-80B |
61 87 113 |
16.9 24.2 31.4 |
65 60 51 |
67 | 2900 | 30.0 | 4.0 | 330 |
| ISGB100-125 |
70 100 130 |
19.4 27.8 36.1 |
132 125 114 |
55 66 67 |
2900 | 75.0 | 4.0 | 685 |
| ISGB100-125A |
66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 104 |
55 66 67 |
2900 | 55.0 | 4.0 | 550 |
| ISGB100-125B |
63 90 117 |
17.5 25.0 32.5 |
106.6 101 92 |
65 | 2900 | 45.0 | 4.0 | 440 |
| ISGB100-125C |
58 82 107 |
16.1 22.8 29.7 |
90 85 76 |
63 | 2900 | 37.0 | 4.0 | 385 |
| ISGB125-12.5 |
96 160 192 |
26.7 44.4 53.3 |
13 12.5 12 |
78 82 84 |
2900 | 11.0 | 4.0 | 180 |
| ISGB125-12.5A |
86 143 172 |
23.9 39.7 47.8 |
10.4 10 9.6 |
77 | 2900 | 7.5 | 4.0 | 130 |
| ISGB125-20 |
96 160 192 |
26.7 44.4 53.3 |
22.6 20 17 |
76 80 78 |
2900 | 15.0 | 4.0 | 225 |
| ISGB125-20A |
86 143 172 |
23.9 39.7 47.8 |
18 16 13.6 |
73 77 75 |
2900 | 11.0 | 4.0 | 210 |
| ISGB125-32 |
96 160 192 |
26.7 44.4 53.3 |
36 32 28 |
78 | 2900 | 22.0 | 4.0 | 265 |
| ISGB125-32A |
90 150 180 |
25 41.7 50 |
31.5 28 24.5 |
76 | 2900 | 18.5 | 4.0 | 230 |
| ISGB125-32B |
83 138 166 |
21.7 38.3 46.1 |
27 24 21 |
73 | 2900 | 15.0 | 4.0 | 215 |
| ISGB125-50 |
96 160 192 |
26.7 44.4 53.3 |
55 50 46 |
69 79 78 |
2900 | 37.0 | 5.0 | 400 |
| ISGB125-50A |
90 |
25 41.7 50 |
48.4 44 40.5 |
64 74 73 |
2900 | 30.0 | 5.0 | 380 |
| ISGB125-50B |
83 138 166 |
21.8 38.3 46.1 |
41.3 37.5 34.5 |
72 | 2900 | 22.0 | 5.0 | 325 |
| ISGB125-80 |
96 160 192 |
26.7 44.4 53.3 |
87 80 73 |
65 77 74 |
2900 | 55.0 | 4.5 | 580 |
| ISGB125-80A |
90 150 180 |
25 41.7 50 |
76 70 64 |
74 | 2900 | 45.0 | 4.5 | 495 |
| ISGB125-80B |
83 138 166 |
21.7 38.3 46.1 |
65 60 55 |
73 | 2900 | 37.0 | 4.5 | 430 |
| ISGB125-125 |
96 160 192 |
26.7 44.7 53.3 |
133 125 119 |
70 72 68 |
2900 | 90.0 | 4.5 | 800 |
| ISGB125-125A |
90 150 180 |
25 41.7 50 |
117 110 104.6 |
65 70 71 |
2900 | 75.0 | 4.5 | 715 |
| ISGB125-125B |
86 143 172 |
23.8 39.7 47.8 |
106.4 100 95.2 |
65 69 66 |
2900 | 75.0 | 4.5 | 710 |
| ISGB125-125C |
80.5 134 161 |
22.4 37.2 44.7 |
96 88 86 |
68 | 2900 | 55.0 | 4.5 | 590 |
| ISGB125-32(I) |
120 200 240 |
33.3 55.6 66.7 |
35 32 28 |
64 76 75 |
2900 | 30.0 | 4.5 | 325 |
| ISGB125-32(I)A |
112 187 224 |
31.1 51.9 62.2 |
31.5 28 24 |
63 75 75 |
2900 | 22.0 | 4.5 | 295 |
| ISGB125-50(I) |
120 200 240 |
33.3 55.6 66.7 |
55 50 46 |
63 74 73 |
2900 | 45.0 | 4.5 | 430 |
| ISGB125-50(I)A |
112 187 224 |
31.1 51.9 62.2 |
48.4 44 40 |
62 73 73 |
2900 | 37.0 | 4.5 | 420 |
| ISGB125-50(I)B |
104 173 208 |
28.9 48.1 57.8 |
41 37 34.5 |
61 72 73 |
2900 | 30.0 | 4.5 | 410 |
| ISGB125-80(I) |
120 200 240 |
33.3 55.6 66.7 |
87 80 72 |
65 76 74 |
2900 | 75.0 | 4.5 | 685 |
| ISGB125-80(I)A |
112 187 224 |
31.1 51.9 62.2 |
76 70 63 |
64 75 73 |
2900 | 55.0 | 4.5 | 545 |
| ISGB125-80(I)B |
104 173 208 |
28.9 48.1 57.8 |
65 60 54 |
63 74 72 |
2900 | 45.0 | 4.5 | 460 |
| ISGB125-125(I) |
120 200 240 |
33.3 55.6 66.7 |
133 125 120 |
58 73 75 |
2900 | 110.0 | 4.5 | 950 |
| ISGB125-125(I)A |
112 187 224 |
31.1 51.9 62.2 |
116 110 105 |
57 72 74 |
2900 | 90.0 | 4.5 | 785 |
| ISGB125-125(I)B |
104 173 208 |
28.9 48.1 57.8 |
100 95 91 |
55 70 72 |
2900 | 75.0 | 4.5 | 750 |
| ISGB150-12.5 |
112 160 208 |
31.1 44.4 57.8 |
13.5 12.5 10 |
60 72 66 |
1450 | 11.0 | 3.5 | 200 |
| ISGB150-12.5A |
98 140 182 |
27.2 39 50.6 |
11 10 8.5 |
68 70 71 |
1450 | 7.5 | 3.5 | 180 |
| ISGB150-20 |
112 160 208 |
31.1 44.4 57.8 |
23.5 20 14 |
66 71 66 |
1450 | 15.0 | 3.5 | 250 |
| ISGB150-20A |
98 140 182 |
27.2 39 50.6 |
19 17 11 |
65 70 66 |
1450 | 11.0 | 3.5 | 230 |
| ISGB150-20B |
84 120 156 |
23.3 33.3 43.3 |
15.5 14 10 |
62 70 68 |
1450 | 7.5 | 3.5 | 200 |
| ISGB150-32 |
112 160 208 |
31.1 44.4 57.8 |
33 32 28 |
62 70 80 |
1450 | 22.0 | 3.5 | 280 |
| ISGB150-32A |
98 140 182 |
27.2 39 50.6 |
29 28 26.6 |
600 71 80 |
1450 | 18.5 | 3.5 | 270 |
| ISGB150-32B |
84 120 156 |
23.3 33.3 43.3 |
25 24 22.5 |
66 71 70 |
1450 | 15.0 | 3.5 | 250 |
| ISGB150-50 |
112 160 208 |
31.1 44.4 57.8 |
52 50 42 |
60 72 80 |
1450 | 37.0 | 3.5 | 515 |
| ISGB150-50A |
98 140 182 |
27.2 39 50.5 |
46 44 39 |
60 70 80 |
1450 | 30.0 | 3.5 | 500 |
| ISGB150-50B |
84 120 156 |
23.3 33.3 43.3 |
41 38 30 |
66 70 73 |
1450 | 22.0 | 3.5 | 480 |
| ISGB150-80 |
112 160 208 |
31.1 44.4 57.8 |
83 80 75 |
67 72 69 |
1450 | 55.0 | 3.5 | 900 |
| ISGB150-80A |
98 140 182 |
27.2 39 50.6 |
73 70 66 |
65 70 67 |
1450 | 45.0 | 3.5 | 765 |
| ISGB150-80B |
84 120 150 |
23.3 33.3 43.3 |
65 60 56 |
62 67 65 |
1450 | 37.0 | 3.5 | 660 |
| ISGB150-80 |
120 200 240 |
33.3 55.6 66.7 |
87 80 72 |
65 76 74 |
2900 | 75.0 | 4.2 | 710 |
| ISGB150-80A |
112 187 224 |
31.1 51.9 62.2 |
76 70 63 |
64 75 73 |
2900 | 55.0 | 4.2 | 560 |
| ISGB150-80B |
104 173 208 |
28.9 48.1 57.8 |
65 60 54 |
63 74 72 |
2900 | 45.0 | 4.2 | 465 |
| ISGB150-125 |
120 200 240 |
33.3 55.6 66.7 |
133 125 120 |
58 73 75 |
2900 | 110.0 | 4.5 | 980 |
| ISGB150-125A |
112 187 224 |
31.1 51.9 62.2 |
116 110 105 |
57 72 74 |
2900 | 90.0 | 4.5 | 805 |
| ISGB150-125B |
104 173 208 |
28.9 48.1 57.8 |
100 95 91 |
55 70 72 |
2900 | 75.0 | 4.5 | 725 |
| ISGB150-12.5(I) |
140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 | 15.0 | 3.0 | 265 |
| ISGB150-12.5(I)A |
125 179 233 |
34.7 49.7 64.6 |
11 |
66 76 76 |
1450 | 11.0 | 3.0 | 245 |
| ISGB150-20(I) |
140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 | 18.5 | 3.0 | 300 |
| ISGB150-20(I)A |
129 184 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 | 15.0 | 3.0 | 265 |
| ISGB150-20(I)B |
117 167 217.5 |
32.5 46.4 60.4 |
15.2 14 12 |
71 76 74 |
1450 | 11.0 | 3.0 | 245 |
| ISGB150-32(I) |
140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 73 |
1450 | 30.0 | 3.5 | 410 |
| ISGB150-32(I)A |
131 187 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
9 |
1450 | 22.0 | 3.5 | 335 |
| ISGB150-32(I)B |
121 173 225 |
33.6 48.1 62.5 |
25 24 21 |
69 76 74 |
1450 | 18.5 | 3.5 | 310 |
| ISGB150-50(I) |
140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 | 45.0 | 3.5 | 500 |
| ISGB150-50(I)A |
131 187 243 |
36.4 51.9 67.5 |
46.6 44 38.3 |
67 74 70 |
1450 | 37.0 | 3.5 | 460 |
| ISGB150-50(I)B |
122 174 226.5 |
33.9 48.3 62.9 |
40.5 38 33 |
66 73 69 |
1450 | 30.0 | 3.5 | 435 |
| ISGB150-50(I)C |
112 160 208 |
31.1 44.4 57.8 |
34 32 28 |
71 | 1450 | 22.0 | 3.5 | 370 |
| ISGB150-80(I) |
140 200 260 |
38.9 55.6 72.2 |
84 80 75 |
62 69 67 |
1450 | 75.0 | 3.5 | 1050 |
| ISGB150-80(I)A |
131 187 243 |
36.4 51.9 67.5 |
73 70.5 66 |
61 68 66 |
1450 | 75.0 | 3.5 | 900 |
| ISGB150-80(I)B |
122 174 226.5 |
33.9 48.3 62.9 |
65 62 58 |
60 66 64 |
1450 | 55.0 | 3.5 | 780 |
| ISGB150-80(I)C |
112 |
31.1 44.4 57.8 |
56.5 54.5 51 |
58 64 62 |
1450 | 45.0 | 3.5 | 650 |
| ISGB200-12.5 |
140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.8 |
68 |
1450 | 15.0 | 3.0 | 270 |
| ISGB200-12.5A |
125 179 233 |
34.7 49.7 64.6 |
11 |
66 |
1450 | 11.0 | 3.0 | 245 |
| ISGB200-20 |
140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 |
1450 | 18.5 | 3.0 | 310 |
| ISGB200-20A |
129 184 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 |
1450 | 15.0 | 3.0 | 365 |
| ISGB200-20B |
117 167 217.5 |
32.5 |
15.2 14 12 |
71 76 74 |
1450 | 11.0 | 3.0 | 245 |
| ISGB200-32 |
140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 78 |
1450 | 30.0 | 3.5 | 420 |
| ISGB200-32A |
131 187 243 |
36.4 51.9 67.5 |
29.5 27 24.5 |
69 77 78 |
1450 | 22.0 | 3.5 | 350 |
| ISGB200-32B |
121 |
33.6 48.1 62.5 |
25 24 21 |
69 76 73 |
1450 | 18.5 | 3.5 | 320 |
| ISGB200-50 |
140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 | 45.0 | 3.5 | 495 |
| ISGB200-50A |
131 187 243 |
364 51.9 67.5 |
46.6 44 38.3 |
67 74 70 |
1450 | 37.0 | 3.5 | 460 |
| ISGB200-50B |
122 174 226.5 |
33.9 48.3 62.9 |
40.5 38 33 |
73 | 1450 | 30.0 | 3.5 | 445 |
| ISGB200-50C |
112 160 208 |
31.1 44.4 57.8 |
34 32 28 |
71 | 1450 | 22.0 | 3.5 | 380 |
| ISGB200-12.5(I) |
280 400 520 |
77.8 111.1 144 |
13.4 |
70 80 79 |
1450 | 22.0 | 4.0 | 385 |
| ISGB200-12.5(I)A |
250 358 465 |
69.4 99.4 129.2 |
10.7 10 8.5 |
68 78 77 |
1450 | 18.5 | 4.0 | 470 |
| ISGB200-20(I) |
280 400 520 |
77.8 111.1 144 |
22.2 20 14 |
75 80 72 |
1450 | 30.0 | 4.0 | 480 |
| ISGB200-20(I)A |
250 358 465 |
69.4 99.4 129.2 |
19 17 13 |
73 78 70 |
1450 | 22.0 | 4.0 | 430 |
| ISGB200-20(I)B |
226 322 419 |
62.8 89.4 116.4 |
15.5 14 10 |
70 75 73 |
1450 | 18.5 | 4.0 | 390 |
| ISGB200-32(I) |
280 400 520 |
77.8 111.1 144 |
36 32 26 |
73 80 75 |
1450 | 55.0 | 4.0 | 680 |
| ISGB200-32(I)A |
262 374 486 |
72.8 103.9 135 |
31.5 28 23 |
72 79 74 |
1450 | 45.0 | 4.0 | 560 |
| ISGB200-32(I)B |
242 346 450 |
67.2 96.1 125 |
27.5 24 18.5 |
78 | 1450 | 37.0 | 4.0 | 535 |
| ISGB200-50(I) |
280 |
77.8 111.1 144 |
54.5 50 39 |
75 81 77 |
1450 | 75.0 | 4.0 | 835 |
| ISGB200-50(I)A |
262 352 486 |
72.8 103.9 135 |
48 44 35 |
73 80 75 |
1450 | 75.0 | 4.0 | 835 |
| ISGB200-50(I)B |
242 346 450 |
67.2 96.1 125 |
42 38 29.6 |
72 |
1450 | 55.0 | 4.0 | 700 |
| ISGB200-50(I)C |
224 320 416 |
62.2 88.9 115.6 |
34.9 32 25 |
70 76 72 |
1450 | 45.0 | 4.0 | 585 |
| ISGB200-80(I) |
280 400 520 |
77.8 111.1 144 |
87 |
73 80 77 |
1450 | 132.0 | 5.0 | 1565 |
| ISGB200-80(I)A |
262 374 486 |
72.8 103.9 135 |
76 70 63 |
72 79 76 |
1450 | 110.0 | 5.0 | 1415 |
| ISGB200-80(I)B |
242 346 450 |
67.2 96.1 125 |
65 60 54 |
71 78 75 |
1450 | 90.0 | 5.0 | 1290 |
| ISGB200-80(I)C |
224 320 416 |
62.2 88.9 115.6 |
62 56 48 |
70 76 74 |
1450 | 75.0 | 4.0 | 1050 |
| ISGB200-125(I) |
280 400 520 |
77.8 111.1 144.4 |
135 125 104 |
79 | 1450 | 200.0 | 4.0 | 1680 |
| ISGB200-125(I)A |
256 352 448 |
71.1 97.8 124 |
120 112 88 |
78 | 1450 | 200.0 | 4.0 | 1680 |
| ISGB200-125(I)B |
224 320 416 |
62.2 88.9 115.6 |
104 96 72 |
77 | 1450 | 132.0 | 4.0 | 1450 |
| ISGB250-12.5 |
400 650 670 |
111.1 152.8 186.1 |
13.5 12.5 11 |
78 82 78 |
1450 | 30.0 | 4.0 | 550 |
| ISGB250-12.5A |
368 |
102.2 140.6 168.7 |
11.6 10.8 9.5 |
74 80 76 |
1450 | 22.0 | 5.0 | 500 |
| ISGB250-20 |
400 550 670 |
111.1 152.8 186.1 |
22.5 20 16 |
78 82 84 |
1450 | 45.0 | 5.0 | 620 |
| ISGB250-20A |
368 506 607 |
102.2 140.6 168.7 |
19.5 17 14.6 |
80 | 1450 | 37.0 | 5.0 | 550 |
| ISGB250-32 |
400 550 670 |
111.1 152.8 186.1 |
36 32 26 |
77 80 81 |
1450 | 75.0 | 5.0 | 915 |
| ISGB250-32A |
368 506 607 |
102.2 140.6 168.7 |
31.5 28 23 |
78 | 1450 | 55.0 | 5.0 | 840 |
| ISGB250-32B |
339 466 559 |
94 129.3 155.2 |
26.5 25 20 |
76 | 1450 | 45.0 | 5.0 | 695 |
| ISGB250-50 |
400 550 670 |
111.1 152.8 186.1 |
54.5 50 39 |
69 76 72 |
1450 | 110.0 | 5.0 | 1557 |
| ISGB250-50A |
368 |
102.2 140.6 168.7 |
48 44 35.5 |
68 74 70 |
1450 | 90.0 | 5.0 | 1055 |
| ISGB250-50B |
339 466 559 |
94 129.3 155.2 |
43 39.5 32.5 |
66 72 68 |
1450 | 75.0 | 5.0 | 910 |
| ISGB250-50C |
311 428 514 |
86.5 119 142.8 |
38 35 28 |
63 69 65 |
1450 | 75.0 | 5.0 | 910 |
| ISGB250-70 |
400 |
111.1 152.8 186.1 |
76 70 63 |
75 76 78 |
1450 | 160.0 | 5.0 | 1545 |
| ISGB250-70A |
368 506 607 |
102.2 140.6 168.7 |
65 60 54 |
74 75 77 |
1450 | 132.0 | 5.0 | 1355 |
| ISGB250-70B |
339 466 559 |
94 129.3 155.2 |
55 50 42 |
73 74 74 |
1450 | 90.0 | 5.0 | 1055 |
| ISGB250-70C |
311 428 514 |
86.5 119 142.8 |
49.5 44 38 |
71 72 73 |
1450 | 75.0 | 5.0 | 965 |
| ISGB250-80 |
500 550 670 |
111.1 152.8 186.1 |
84 80 70 |
73 77 75 |
1450 | 200.0 | 5.0 | 1750 |
| ISGB250-80A |
368 506 670 |
102.2 140.6 168.7 |
75 74 62.5 |
72 75 74 |
1450 | 160.0 | 5.0 | 1560 |
| ISGB250-80B |
339 466 559 |
94 129.3 155.2 |
66.5 63.5 55.5 |
70 |
1450 | 132.0 | 5.0 | 1420 |
| ISGB250-80C |
311 428 514 |
86.5 119 142.8 |
58 55 48.5 |
69 71 70 |
1450 | 110.0 | 5.0 | 1350 |
| ISGB300-12.5 |
500 720 860 |
138.9 200 238.9 |
13.5 12.5 10.5 |
78 83 78 |
1450 | 37.0 | 5.0 | 985 |
| ISGB300-12.5A |
460 |
127.8 184 219.8 |
12 11 9.3 |
77 82 77 |
1450 | 30.0 | 5.0 | 925 |
| ISGB3300-18 |
480 720 900 |
133.3 200 250 |
20 |
77 81 74 |
1450 | 55.0 | 5.0 | 1135 |
| ISGB300-18A |
438 607 821 |
121.7 182.5 228.1 |
16.5 15 13 |
75 79 72 |
1450 | 45.0 | 5.0 | 1040 |
| ISGB300-18B |
400 600 750 |
111.1 167.0 208.3 |
14 12.5 11 |
73 77 70 |
1450 | 37.0 | 5.0 | 900 |
| ISGB300-20 |
500 720 900 |
138.9 200 250 |
23 20 16 |
80 83 84 |
1450 | 55.0 | 5.0 | 900 |
| ISGB300-20A |
460 662 791 |
127.8 184 219.8 |
20.2 17.5 14.2 |
81 | 1450 | 45.0 | 5.0 | 785 |
| ISGB300-28 |
480 720 900 |
133.3 200 250 |
31 28 25 |
77 81 77 |
1450 | 75.0 | 5.0 | 1350 |
| ISGB300-28A |
444 666 833 |
123.3 185 231.4 |
26.5 24 21.5 |
76 80 76 |
1450 | 75.0 | 5.0 | 1350 |
| ISGB300-28B |
415 623 779 |
115.3 173.1 216.4 |
23 21 18.5 |
79 | 1450 | 55.0 | 5.0 | 1170 |
| ISGB300-32 |
500 720 900 |
138.9 200 250 |
36 32 26 |
79 82.5 84 |
1450 | 90.0 | 5.0 | 1350 |
| ISGB300-32A |
460 662 791 |
127.8 184 219.8 |
30.5 28 23.5 |
74 80 74 |
1450 | 75.0 | 5.0 | 1250 |
| ISGB300-32B |
423 609 728 |
117.6 169.3 202.2 |
25.5 23.5 20 |
72 78 73 |
1450 | 55.0 | 5.0 | 1080 |
| ISGB300-44 |
480 720 900 |
133.3 200 250 |
48 44 34 |
76 84 82 |
1450 | 132.0 | 5.0 | 1900 |
| ISGB300-44A |
444 666 833 |
123.3 185 231.4 |
41.4 38 30 |
80 | 1450 | 110.0 | 5.0 | 1700 |
| ISGB300-44B |
409 614 767 |
113.6 170.6 213.1 |
35 32 25 |
78 | 1450 | 90.0 | 5.0 | 1550 |
| ISGB300-50 |
500 720 900 |
138.9 200 250 |
54.5 50 42 |
75 80 78 |
1450 | 132.0 | 5.5 | 1725 |
| ISGB300-50A |
460 662 791 |
127.8 184 219.8 |
47 44 36.5 |
74 79 77 |
1450 | 110.0 | 5.5 | 1520 |
| ISGB300-50B |
423 609 728 |
117.6 169.3 202.2 |
41 38 32 |
72 77 75 |
1450 | 90.0 | 5.5 | 1400 |
| ISGB300-50C |
389 561 670 |
108.2 155.7 186 |
35.5 33 27.5 |
69 |
1450 | 75.0 | 5.5 | 1250 |
| ISGB300-65 |
500 720 900 |
138.9 |
71 65 58 |
75 81 82 |
1450 | 200.0 | 5.5 | 2150 |
| ISGB300-65A |
460 662 791 |
127.8 184 219.8 |
60 55 49 |
74 80 81 |
1450 | 160.0 | 5.5 | 1730 |
| ISGB300-65B |
423 609 728 |
117.6 169.3 202.2 |
49 45 35 |
73 79 80 |
1450 | 110.0 | 5.5 | 1630 |
| ISGB300-65C |
389 561 670 |
108.2 155.7 186 |
42 38 30 |
72 78 79 |
1450 | 90.0 | 5.5 | 1500 |
| ISGB300-80 |
500 720 900 |
138.9 |
84 80 72 |
74 80 75 |
1450 | 250.0 | 5.5 | 2280 |
| ISGB300-80A |
460 662 791 |
127.8 184 219.8 |
74 80.5 63.5 |
73 79 74 |
1450 | 200.0 | 5.5 | 2150 |
| ISGB300-80B |
423 609 728 |
117.6 169.3 202.2 |
65 62 56 |
71 77 72 |
1450 | 160.0 | 5.5 | 1980 |
| ISGB300-80C |
389 |
108.2 155.7 186 |
57 54.5 49 |
68 75 70 |
1450 | 132.0 | 5.5 | 1850 |
| ISGB350-12.5 |
718 1080 1345 |
199.4 300 373.6 |
15 12.5 11 |
75 83 81 |
970 | 55.0 | 5.5 | 1200 |
| ISGB350-12.5A |
663 995 1245 |
184.2 276.4 345.8 |
12 10 8.5 |
72 81 79 |
970 | 45.0 | 5.5 | 1020 |
| ISGB350-20 |
718 1080 1345 |
199.4 300 373.6 |
23.5 20 18 |
76 82 80 |
970 | 90.0 | 5.5 | 1450 |
| ISGB350-20A |
663 995 1245 |
184.2 |
20 17 15 |
74 80 78 |
970 | 75.0 | 5.5 | 1320 |
| ISGB350-20B |
620 931 1165 |
172.2 258.6 323.6 |
17.5 15 13 |
71 78 77 |
970 | 55.0 | 5.5 | 115 |
| ISGB350-32 |
718 1080 1345 |
199.4 300 373.6 |
36.4 32 28.5 |
79 83 78 |
1450 | 132.0 | 5.5 | 2150 |
| ISGB350-32A |
663 995 1245 |
184.2 276.4 345.6 |
30.5 27 25 |
74 |
1450 | 110.0 | 5.5 | 2000 |
| ISGB350-32B |
620 931 1165 |
172.2 258.6 323.6 |
26.5 24 21 |
73 79 75 |
1450 | 90.0 | 5.5 | 1850 |
| ISGB350-40 |
718 1080 1345 |
199.4 300 373.6 |
44.6 40 34.6 |
82 | 1450 | 160.0 | 5.5 | 1700 |
| ISGB350-40A |
642 965 120 |
178.3 268.1 334.2 |
35.7 32 27.7 |
80 | 1450 | 132.0 | 5.5 | 1500 |
| ISGB350-40B |
600 900 1121 |
166.7 250 311.4 |
31.2 28.2 24.6 |
78 | 1450 | 110.0 | 5.5 | 1300 |
| ISGB350-50 |
718 1080 1345 |
199.4 300 373.6 |
54.7 50 44.2 |
78 83 77 |
1450 | 200.0 | 5.5 | 2300 |
| ISGB350-50A |
663 995 1245 |
184.2 276.4 345.8 |
48.3 44 36.8 |
77 81 76 |
1450 | 160.0 | 5.5 | 2100 |
| ISGB350-50B |
620 931 1165 |
172.2 258.6 323.6 |
42.5 38 32.3 |
79 | 1450 | 132.0 | 5.5 | 1950 |
| ISGB350-60 |
718 1080 1345 |
199.4 300 373.6 |
64.8 60 55 |
82 | 1450 | 250.0 | 5.5 | 2500 |
| ISGB350-60A |
663 995 1245 |
184.2 376.4 345.8 |
59.2 54 48 |
80 | 1450 | 200.0 | 5.5 | 2250 |
| ISGB350-60B |
620 931 1165 |
172.2 258.6 323.6 |
51.3 46.9 41.3 |
78 | 1450 | 160.0 | 5.5 | 2100 |
| ISGB350-12.5(I) |
1000 |
277.8 333.3 402.8 |
13.5 12.5 10.5 |
76 80 77 |
970 | 55.0 | 6.0 | 1250 |
| ISGB350-12.5(I)A |
900 1080 1300 |
250 300 361 |
11.5 10.5 9 |
76 80 76 |
970 | 45.0 | 6.0 | 1150 |
| ISGB350-20(I) |
1000 1200 1450 |
277.8 333.3 402.8 |
23 20 16 |
76 80 76 |
970 | 90.0 | 6.0 | 1580 |
| ISGB350-20(I)A |
900 1080 1300 |
250 300 361 |
19 17 14 |
73 78 74 |
970 | 75.0 | 6.0 | 1350 |
| ISGB350-32(I) |
1000 1200 1450 |
277.8 333.3 402.8 |
36 32 26 |
74 78 75 |
1450 | 160.0 | 6.0 | 1870 |
| ISGB350-32(I)A |
900 1080 1300 |
250 300 361 |
31.5 28 23 |
72 76 73 |
1450 | 132.0 | 6.0 | 1720 |
| ISGB350-32(I)B |
745 985 1182 |
207 273 328 |
27 25 20 |
71 75 72 |
1450 | 110.0 | 6.0 | 1650 |
| ISGB350-50(I) |
1000 1200 1450 |
277.8 333.3 402.8 |
55 50 43 |
70 74 72 |
1450 | 250.0 | 6.0 | 2350 |
| ISGB350-50(I)A |
900 1080 1300 |
250 300 361 |
47.5 44 38 |
68 72 70 |
1450 | 200.0 | 6.0 | 2100 |
| ISGB350-50(I)B |
745 985 1182 |
207 273 328 |
42 38.5 34 |
60 70 68 |
1450 | 160.0 | 6.0 | 2000 |
